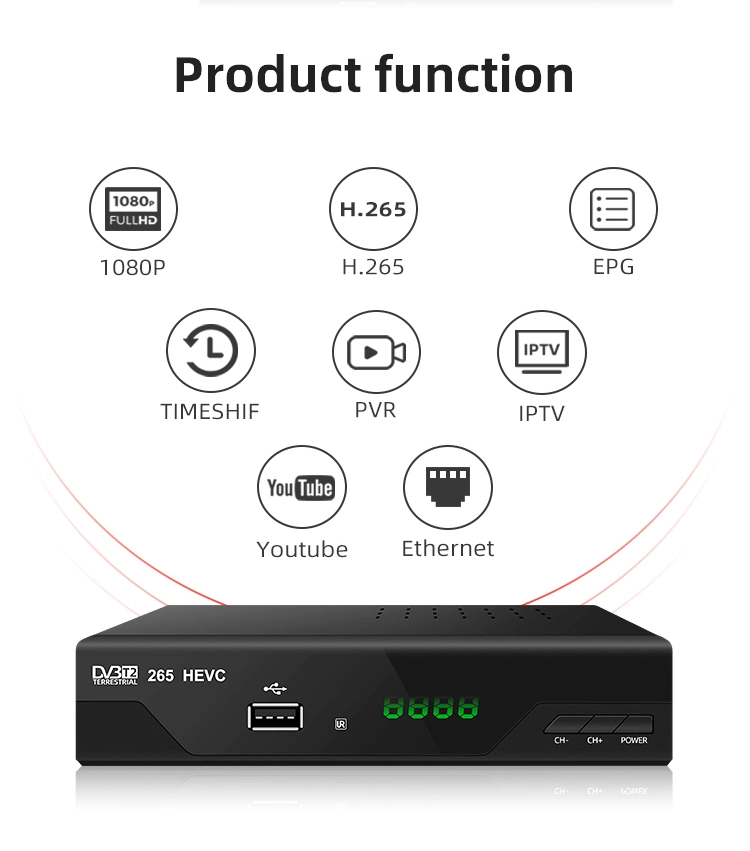

hot selling dvb-t2 hevc set top box t2 tv box
√Technical specification:
√Hardware Features:
√Software General Features(DVB-T/T2):
Electric Performance:
√Technical specification:
| Product Type Name | Produce Type Number | DVB-T2 H.265 |
| Main Features | STB Type | DVB-T2 FTA Receiver |
| Main Chipset | Sunplus1509M | |
| Mechanical | 115MM/148MM/168MM/220MM/260MM | |
| TUNER Type | MXL608 & R836 | |
| SMPS Type | Separate SMPS | |
| Function/Interface | CVBS,AR,AL,YPbPr,SPDIF,HDMI, 1*USB2.0,LED Display, ANT(DVB-T/T2) | |
| Heat Sink | YES |
√Hardware Features:

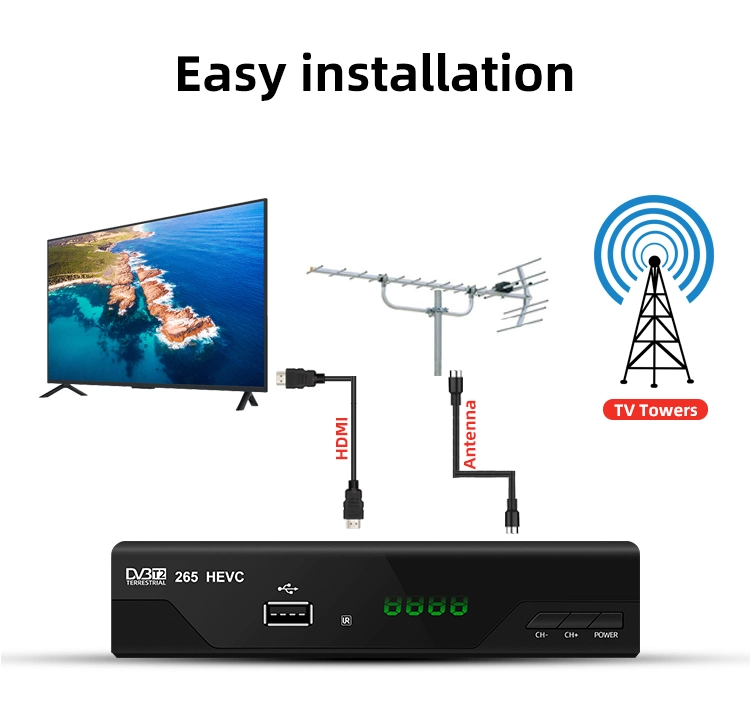

| Rear panel | USB 2.0 | YES |
| T2 ANT IN | For DVB-T/T2 signal input | |
| COAXIAL | For Coaxial output for other audio decoder device | |
| HDMI | 19 PIN Female HDMI 1.3 | |
| AC-IN | AC 100~250V,50Hz/60Hz | |
| RF OUT | YES | |
| SCART | SCART |
√Software General Features(DVB-T/T2):
| MPEG | MPEG-2 SD, MPEG-2 HD, H.265/MPEG-4 SD, H.265/MPEG-4 HD |
| PAL/NTSC | Automatic PAL/NTSC conversion |
| Channels Number | FTA channels TV and Radio programs |
| Favorites | 8 different favorite groups selection |
| OSD Language | OSD Language for options:English,French,German,Italian |
| Spanish ,Swedish,Portuguese ,Finland,Holland,Turkish,Czech,Greece,Denish,Thai,Arabic | |
| EPG | Fully support to 7 days Electronic Program Guide(EPG) |
| PIG | Picture in Graphics(PIG) support |
| Color OSD | 256 color/8bit On Screen Display |
| NIT Search | User can set NIT Search On/Off when execute DVBT2 Search |
| DiSEqC | DiSEqC1.0/1.1/1.2/USALS Motor fully support, 13/18V, 0/22K, 0/12V LNB control |
| Channel Edit | Various channel editing functions(favorite, moving, locking, renaming, deleting and sorting) |
| Parental Control | Parental control for channels |
| Soft Upgrade | Software upgrades through USB port, Support OTA. |
| Timer | 25 Timer Reservations, automatically switch to a specific channel |
| Subtitle | Subtitle support DVB EN300743 and EBU |
| Teletext | Teletext support DVB ETS300472 by VBI and OSD |
| HDMI Interface | 480p_60;480i_30;576i_25; 576p_50; 720p_60;720p_50; 1080i_25;1080p_60;1080p_50 |
| Multimedia Support | TS/MPG/MKV/AVI/ASF/FLV/MP4/WMA/WMV/VOB/MOV/DAT/SRT/SUB/BMP/ |
| JPG/JPEG/GIF/PNG/TIF/MP3/M4A files |
Electric Performance:
| 1. Main Chip Sets | CPU frequency | 608MHz | ||
| Flash Memory | 64Mbit/8Mbyte SPI FLASH | |||
| DDR Memory | 512Mbit | |||
| 2. DVB-T/T2 Tuner | Tuner Type | R836 | ||
| Frequency Range | VHF174~230MHz UHF 470~862MHz | |||
| Input Impedance | 75Ω | |||
| Polarization | 22KHz±0.4KHz(0.6V±0.2V)tone, Overload Protection | |||
| Input Level Range | Min -78dbm max -20dbm(64QAM,8K 1/8,7/8) | |||
| Loop-Through | YES | |||
| 3. DVB-T/T2 Tuner | Tuner Type | MXL608 | ||
| Frequency Range | 174MHZ-860MHZ | |||
| Input Impedance | 75Ω | |||
| Input Level Range | Min -78dbm max -20dbm(64QAM,8K 1/8,7/8) | |||
| 4. Video Decoder | Video Decode | MPEG-2 ISO/IEC 13818-2 MP@ML, H.264(MPEG4 part 10) main and high profile level 4.1/MPEG-2 MP@HL | ||
| Aspect Ratio | 4:3,16:9 | |||
| Video Resolution | 1920×1080,1280×720,720×480 | |||
| 5. Audio Decode | Audio Decode | MPEG-1 layerI/II,PCM down mix,IEC958 SPDIF,Dolby 5.1 channel,Dolby down mix 2 channel,Dolby Prologic2 (Optional) | ||
| Sound Mode | LEFT/RIGHT/STEREO/MONO | |||
| Sampling Frequency | 32KHz,44.1KHz,48KHz | |||
| 6. AV Output | Video Bandwidth | SD:5.0MHz(-3dB),HD:30MHz(-3dB) | ||
| Video Impedance | 75Ω | |||
| Video Voltage Level | 1.0Vp-p | |||
| Audio Freq. Range | 20~20KHz | |||
| Audio Impedance | 600Ω | |||
| Audio Voltage Level | 2Vrms(5.6Vp-p) | |||
| 7. Environment | Input Voltage | AC 100~250V,50Hz/60Hz | ||
| Consumption | Max 8W | |||
| Standby | <1W | |||
| Temperature | 0~40ºC | |||
| Humidity | <95% | |||
